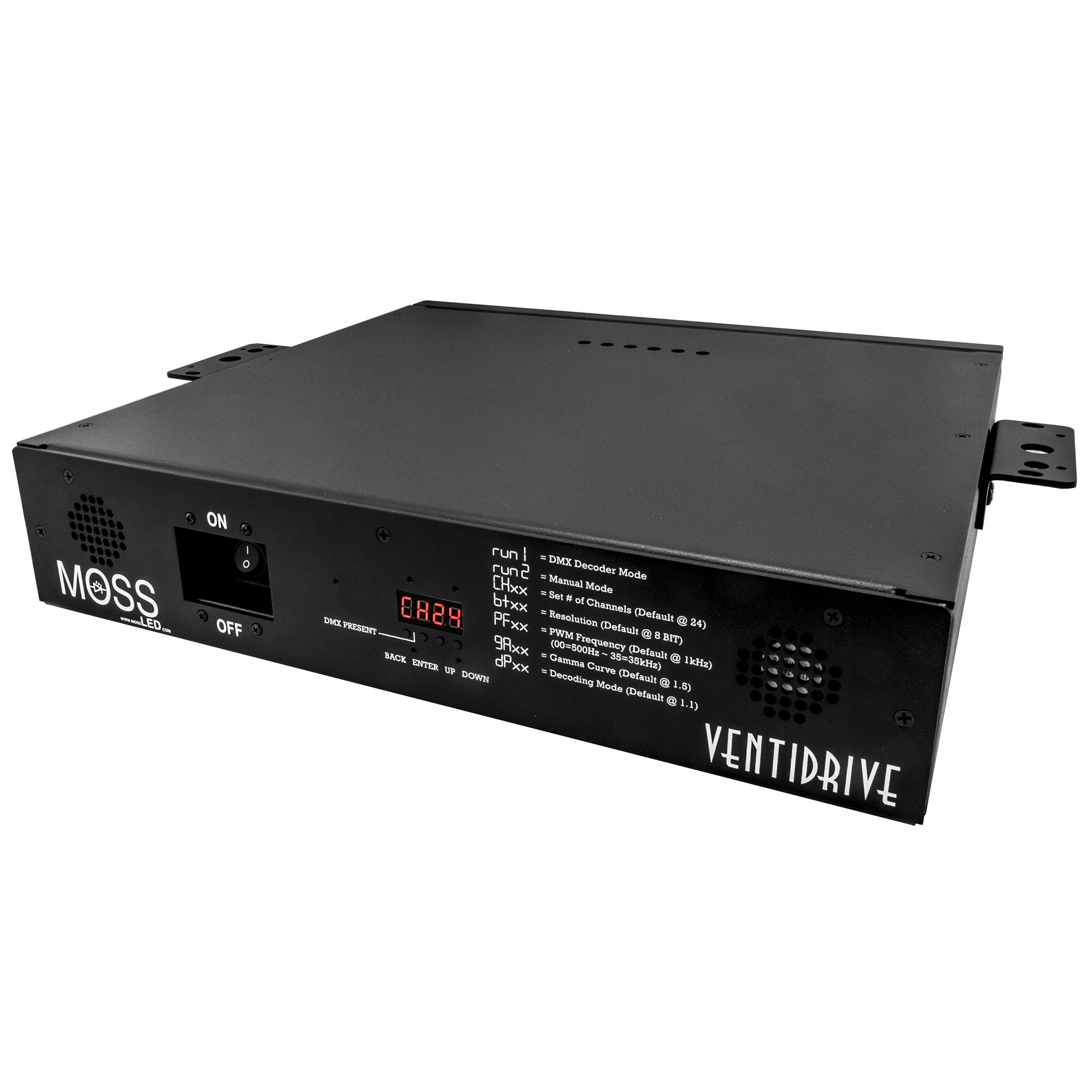

Professional DMX controlled multi-channel LED controller with built-in power supply. Designed to allow for fast plug’n’play connectivity, allowing you to be up and running in no time.
Features precision dimming from 0 – 100%, 8-bit or 16-bit modes, PWM frequency adjustment from 500Hz to 35kHz, full manual control, and dimming curve adjustments.
Each channel has a maximum power output of 4A (96 watts @ 24VDC). Its rugged chassis is capable of being mounted via clamps, in a rack, stacked on top of each-other, or screwed into a wall and allows it to be placed in virtually any location.
Industry-standard 5-position terminal plugs allow for universal connectivity to as many LED products as possible. The newer Version 2 also features 5-Pin Chogori connectors for each port output as well.
TRUE1 connectors & auto-switching internal power supplies allow for power input from 90 – 250VAC.
Whisper-quiet 16dB fans keep the unit cool in any location and to top it all off the VentiDrive can be remotely addressed via RDM. Delivering 50A @ 24VDC this is the most powerful LED dimmer on the market!
Approved for use anywhere in the world!
Specs
Output Voltage (V): 24V DC
Output Current (A): 50A (6 X 8.34A)
Output Power (W): 1200 W (6 X 200W)
Size (inches): 17L X 15.75W X 3.5H
PWM Frequency: 500 Hz ~ 35 kHz
Dimmers: 24 Channels
Frequency Range: 47 ~ 63 Hz
Universal AC input: 90 ~ 250VAC
Low leakage current: .75mA
Protections: short circuit, over voltage, overload, over current, over temp
AC Input Connector: Neutrik True1
Input & Pass-Thru Class: Class 2 power (24 channels @ 4A each)
Output Connector Type: 5-Pin Chogori & 5 Position Terminal
Block Weight: 24.2 lbs
Cooling: Forced Air via 2 Whisper-Quiet 16db Fans
Operating Temperature: -40C to 90C
Output Voltage (V)24V DC Output Current (A)50A (6 X 8.34A) Output Power (W) 1200 W (6 X 200W)Size (inches)17L X 15.75W X 3.5H PWM Frequency 500 Hz ~ 35 kHz Dimmers 24 Channels Frequency Range 47 ~ 63 Hz Universal AC input 90 ~ 250VAC 127 ~ 431VDC Low leakage current .75mA Protections:short circuit, over voltage, overload, over current, over temp AC Input Connector Neutrik True1 Input & Pass-Thru Class Class 2 power (24 channels @ 4A each) Output Connector Type 5 Position Terminal Block Weight 24.2 lbs Cooling Forced Air via 2 Whisper-Quiet 16db Fans Operating Temperature -40C to 90C
VentiDrive V2
Professional DMX controlled multi-channel LED controller with built-in power supply. Designed to allow for fast plug’n’play connectivity, allowing you to be up and running in no time.
Features precision dimming from 0 – 100%, 8-bit or 16-bit modes, PWM frequency adjustment from 500Hz to 35kHz, full manual control, and dimming curve adjustments.
Each channel has a maximum power output of 4A (96 watts @ 24VDC). Its rugged chassis is capable of being mounted via clamps, in a rack, stacked on top of each-other, or screwed into a wall and allows it to be placed in virtually any location.
Industry-standard 5-position terminal plugs allow for universal connectivity to as many LED products as possible. The newer Version 2 also features 5-Pin Chogori connectors for each port output as well.
TRUE1 connectors & auto-switching internal power supplies allow for power input from 90 – 250VAC.
Whisper-quiet 16dB fans keep the unit cool in any location and to top it all off the VentiDrive can be remotely addressed via RDM. Delivering 50A @ 24VDC this is the most powerful LED dimmer on the market!
Approved for use anywhere in the world!
Specs
Output Voltage (V): 24V DC
Output Current (A): 50A (6 X 8.34A)
Output Power (W): 1200 W (6 X 200W)
Size (inches): 17L X 15.75W X 3.5H
PWM Frequency: 500 Hz ~ 35 kHz
Dimmers: 24 Channels
Frequency Range: 47 ~ 63 Hz
Universal AC input: 90 ~ 250VAC
Low leakage current: .75mA
Protections: short circuit, over voltage, overload, over current, over temp
AC Input Connector: Neutrik True1
Input & Pass-Thru Class: Class 2 power (24 channels @ 4A each)
Output Connector Type: 5-Pin Chogori & 5 Position Terminal
Block Weight: 24.2 lbs
Cooling: Forced Air via 2 Whisper-Quiet 16db Fans
Operating Temperature: -40C to 90C
Output Voltage (V)24V DC Output Current (A)50A (6 X 8.34A) Output Power (W) 1200 W (6 X 200W)Size (inches)17L X 15.75W X 3.5H PWM Frequency 500 Hz ~ 35 kHz Dimmers 24 Channels Frequency Range 47 ~ 63 Hz Universal AC input 90 ~ 250VAC 127 ~ 431VDC Low leakage current .75mA Protections:short circuit, over voltage, overload, over current, over temp AC Input Connector Neutrik True1 Input & Pass-Thru Class Class 2 power (24 channels @ 4A each) Output Connector Type 5 Position Terminal Block Weight 24.2 lbs Cooling Forced Air via 2 Whisper-Quiet 16db Fans Operating Temperature -40C to 90C
