This unit converts DMX-512/1990 standard digital signal into six dimmable channels, which can be used with a number of combinations and types of Moss LED products;
- RGBA + WW + CW or
- up to 2 X RGB or
- RGB+WW+CW or
- RGBA or
- RGBW or
- up to 3 x Bi-Color or
- up to 6 x White
LCD Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
Output Current (A): 6 CH @ 10A/CH = Max 60A (6 CH @ 7A/CH = Max 42A to meet UL specifications)
Output Power (W): 720W @ 12V / 1440W @ 24V
Supply Voltage: DC12V – DC24V
Bit Rate: 8 Bit
PWM Frequency: 2400Hz / 4800Hz / 9600Hz
IP Rating: IP40 (Dry Locations Only)
Control Type: DMX
Control Connection: XLR5 or RJ45

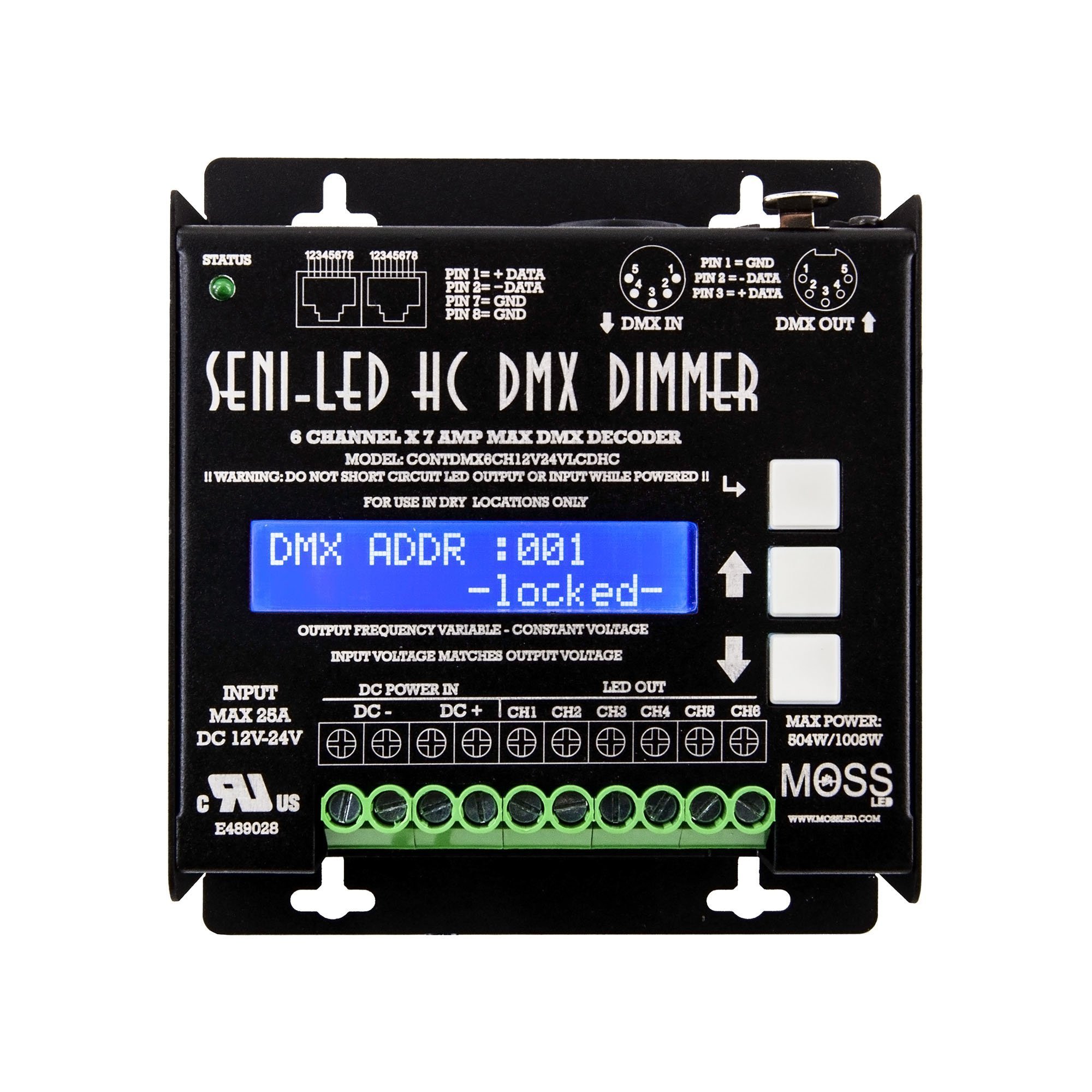

SENI-LED High Current DMX Dimmer
This unit converts DMX-512/1990 standard digital signal into six dimmable channels, which can be used with a number of combinations and types of Moss LED products;
LCD Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
Output Current (A): 6 CH @ 10A/CH = Max 60A (6 CH @ 7A/CH = Max 42A to meet UL specifications)
Output Power (W): 720W @ 12V / 1440W @ 24V
Supply Voltage: DC12V – DC24V
Bit Rate: 8 Bit
PWM Frequency: 2400Hz / 4800Hz / 9600Hz
IP Rating: IP40 (Dry Locations Only)
Control Type: DMX
Control Connection: XLR5 or RJ45
Technical Parameters: Output Current (A)6 CH @ 10A/CH = Max 60A (6 CH @ 7A/CH = Max 42A to meet UL specifications) Output Power (W)720W @ 12V / 1440W @ 24V Supply Voltage DC12V – DC24V Size (inches)L 4.8” x W 4.2” x H 1.2” Working Temperature-0°C to + 70 °C Bit Rate 8 Bit Weight 400g IP Rating IP40 PWM Frequency 2400Hz / 4800Hz / 9600Hz IP Rating IP40 (Dry Locations Only)
