24V RGB+W 4100k Panel 1×1

Description

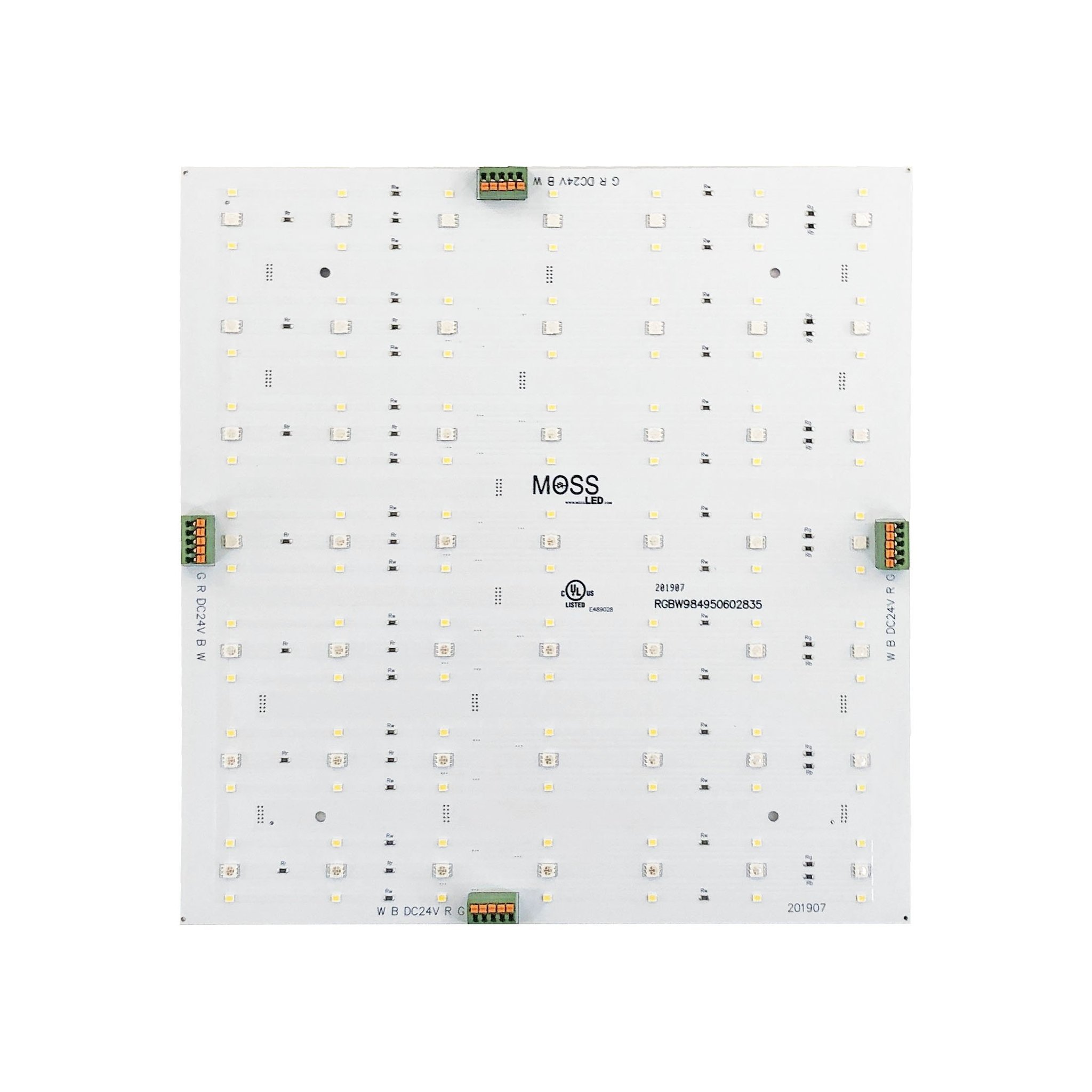

A high output RGB+W 1′ x 1′ panel. 49 X RGB and 98 X 4100k LEDs provide a nice even output for backlighting and downlighting. This is a rigid panel with LEDs mounted on an FR4 PCB which provides fantastic heat dissipation properties. Four mounting holes allow for quick and easy installation onto almost any surface.
Spring-loaded terminal blocks on each side of the panel allow easy connection to any wire from 14 to 20 AWG. Pair this item with our male and female tails for even faster connections.

147 LED / panel (49 RGB & 98 4100k)
LED Type: 5050 + 2835
Lumen / Watt : 91.6
Product Type : RGB + W (4100k)
Product Code : RGBW1544950602835
PCB Width : 300MM X 300MM 11.8″ x 11.8″
Maximum Recommended Panels : 4 Panels
Viewing Angle : 120 degree
Lumen / Watt : 91.6
